In this lab you will validate a solution to a magic square puzzle. Your solution will require you to write code that handles two-dimensional arrays.

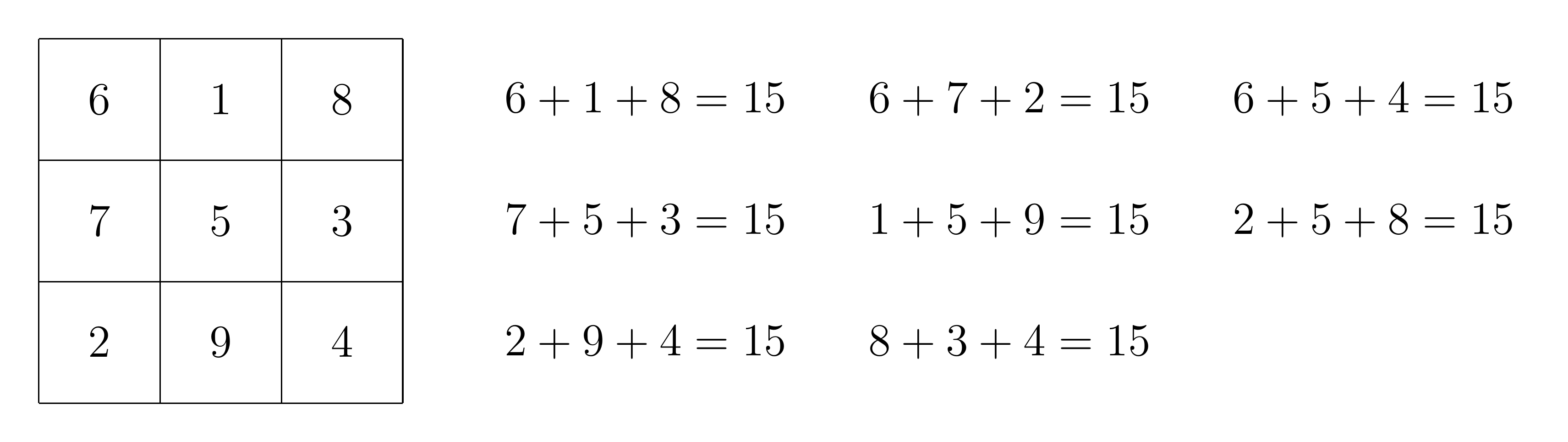

We can see that each row, column, and diagonal sums to 15.

Write a RISC-V program that checks only if the columns of a completed magic square are valid. Only the columns are checked to avoid writing repetitive code segments — checking rows and diagonals requires similar code to checking columns. You must write the function magicSquare with the following specifications:

magicSquare:
This function checks the validity of columns of a magic square.

Arguments:
    a0: pointer to a 2D NxN array of the input magic square where each item is a four-byte unsigned integer
    a1: N
    a2: The target sum to check against. That is, what each column would need to sum to for the square
        to be considered valid.

Return:
    a0: 1 if all columns are valid. 0 if at least one column is not valid.
    a1: Number of valid columns

You can make any other helper functions as long as they do not share a name with any labels already used in the common.s file.

The provided file magicSquare.s contains the label for the magicSquare function. Your solution must be written using this file. Do not modify the magicSquare label, because this label is required by the common.s file to properly call your magicSquare function.

The directive .include "common.s" in magicSquare.s causes RARS to insert the code from the file common.s before the start of any code in the solution. The code in common.s allocates space in memory, parses the numbers from the test file into a 2D array of integers, and then calls the magicSquare function written as a solution to the lab. You are encouraged to read the code in the common.s file to understand how the whole program works.

2D Arrays:

In memory, a 2D \(n \times n\) array is stored as a linear array of \(n \cdot n\) elements. There are two ways to store a 2D array in memory: row-major order or column-major order. For row-major order, each row is contiguous in memory.

For column-major order, each column is contiguous in memory.

For this lab, the magic square is stored in row-major order, and each element is a single word. For example, in the C language, you might access a row and column with nums[row][col], which is equivalent to nums[row*N + col] or *(nums + row*N + col), assuming that there are N elements per row and that each element occupies one byte. In C, this is equivalent to using an array of char. In this lab you have to use a modified version of these relations because each entry is a word, not a single byte.

Loops:

There are many different ways to implement loops in RISC-V. Several examples can be found here: Do-While, While, For.

When debugging, it can be very helpful to step through the assembly code instruction by instruction. You can use ebreak statements to pause the execution program execution at a specified instruction and examine the state of the registers and memory. From that point you can then execute instructions one by one.

The folder Code/Tests/ contains sample test cases. The *.txt files contain test inputs. The corresponding *.out file contains the correct output. The provided test cases are not extensive. Additional testing is required to ensure that the solution is correct.

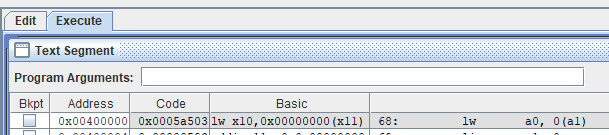

To perfom a test, enter the complete file path of the corresponding test input into the Program Arguments box in RARS. The file path cannot have any spaces. Do not put quotations areound the filename. Provide a full path to the file. For example /home/user/cmput229/test.txt is a valid path, while /home/user/cmput 229/this is a test.txt is not. Once you have entered the path to the test case, you can run the program. If the program arguments field does not appear in your RARS, you need to change your settings. Go to Settings -> Program Arguments Provided To Program (second option) and make sure that this opiton is checked.

You can test your lab from a terminal with rars LABFILE pa TESTFILE where LABFILE is the path to magicSquare.s and TESTFILE is the path to the file that contains the test case you want to test. Depending on the version of RARS and your operating system RARS may print extra copyright lines. Ignore these lines.

• Do not edit any part of the common.s file. Only the functions written by you will be graded. A solution that requires any edits to common.s to work is likely to be incorrect.
• Do not use any of the labels that are already used in common.s
• The size of a magic square is less than or equal to \(50 \times 50\).
• All entries in the magic square are present.
• Ensure that there is a return instruction at the end of your magicSquare function to return execution to common.s.

• Slides used for in-class introduction of the lab (.pptx) (.pdf)
• Marksheet used to mark the lab (.txt)

• 30% for correctly determining the validity of magic squares (correct a0 return value for magicSquare).
• 50% for correctly determining the number of valid columns (correct a1 return value for magicSquare)
• 20% for code cleanliness, readability, and comments

There is a single file to be submitted for this lab: magicSquare.s which should contain the code for magicSquare and all supporting functions.

• Do not add a main label to this file.
• Do not modify the line .include "common.s".
• Keep the file magicSquare.s in the Code folder of the git repository.
